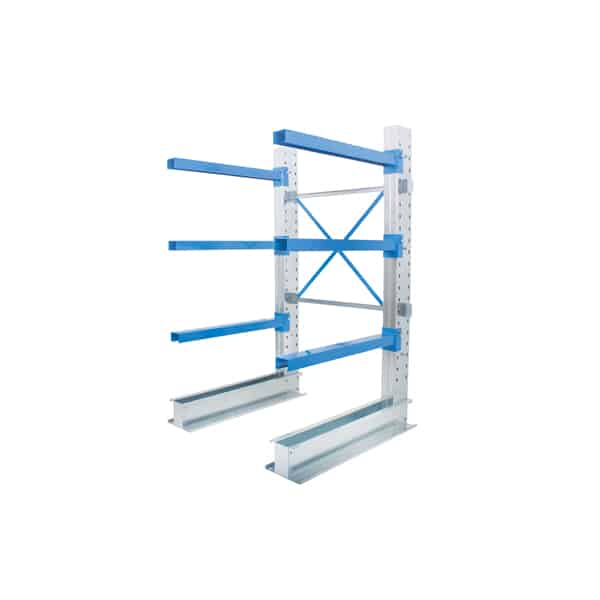

Our cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items.

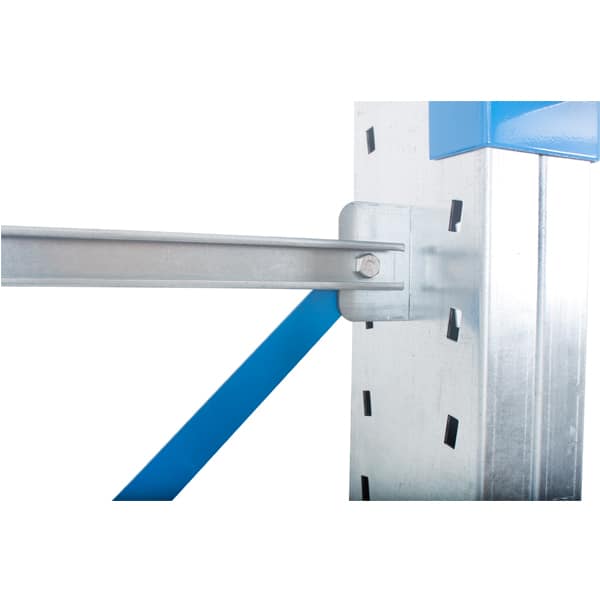

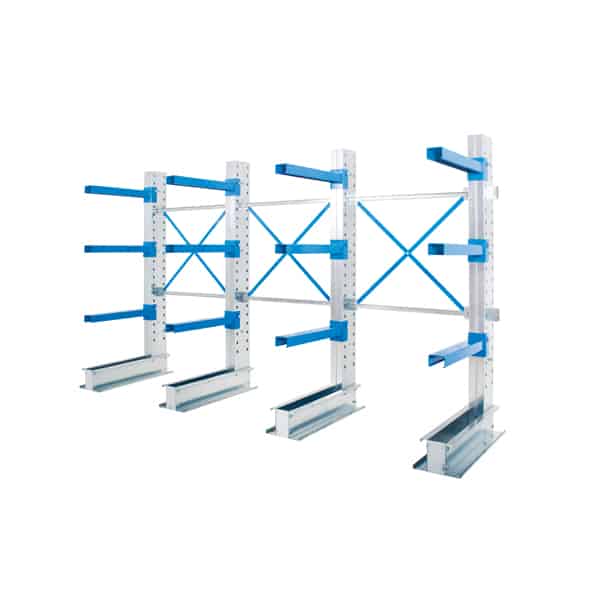

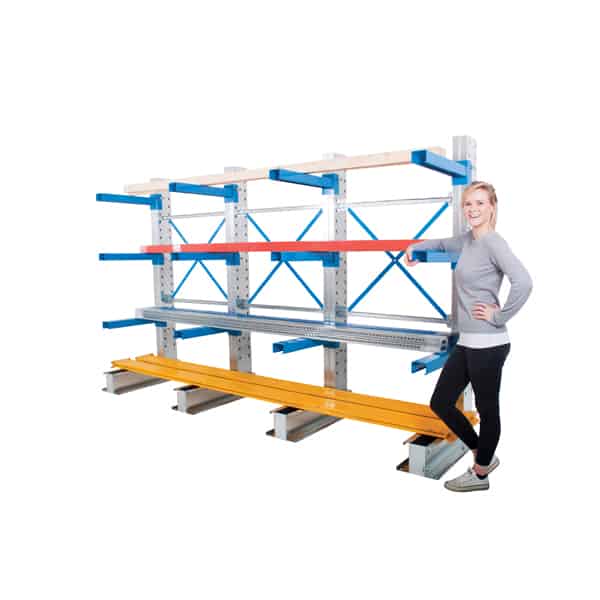

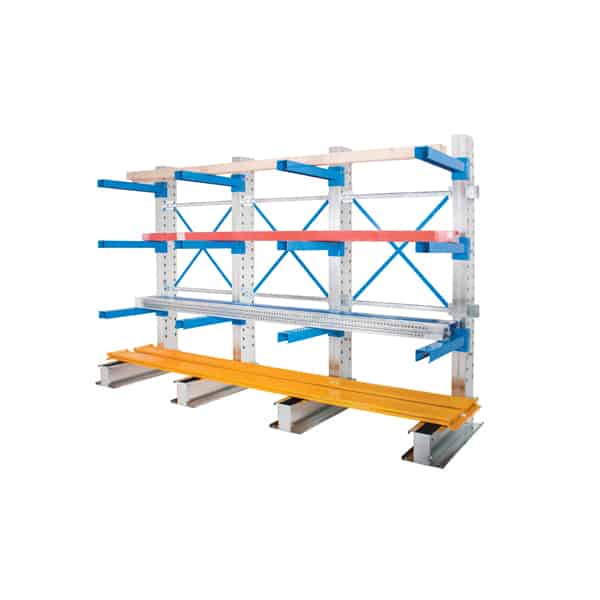

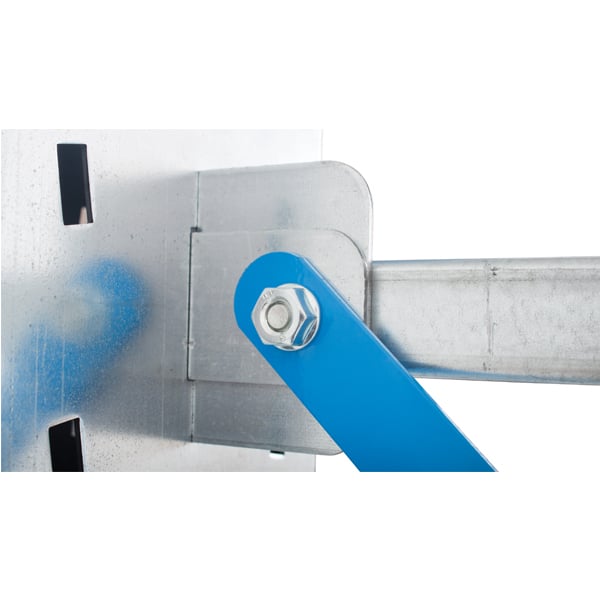

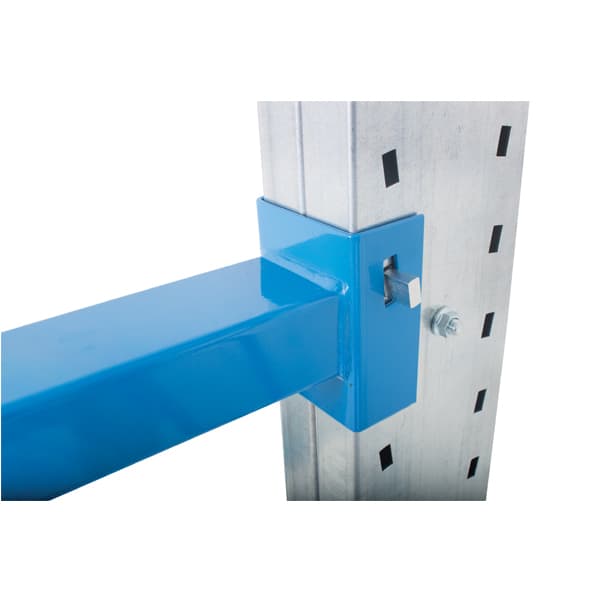

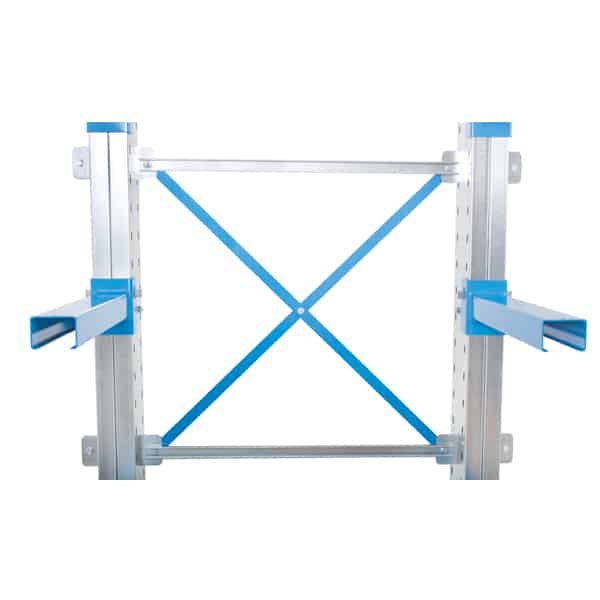

Each bay comes complete with three arms per frame and you can add or deduct the number of levels required. The arms can be fitted with end stops (at an additional cost shown) to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay
DIMENSIONS
HEIGHT
Standard height (mm)
1976
Other available heights (mm)
2432, 2964
WIDTH
Widths (mm)
1000, 1500
DEPTH
Base depths (mm)
Single sided 780, 980, 1180
Double sided 1380, 1780, 2180
Arm length
600, 800, 1000
APPLICATION
Environment
Storeroom, Workshop, Warehouse
Usage
Long items
CONSTRUCTION
Frames: Steel
Galvanised
Bracing: Steel
Galvanised, RAL5015
Arms: Steel
Blue RAL5015
Arm pins: Steel
LOADING
Max Load/Arm*
600kg UDL
Max Bay Load
2200kg (single sided)
4400kg (double sided)
*Max loading capacity per single arm
