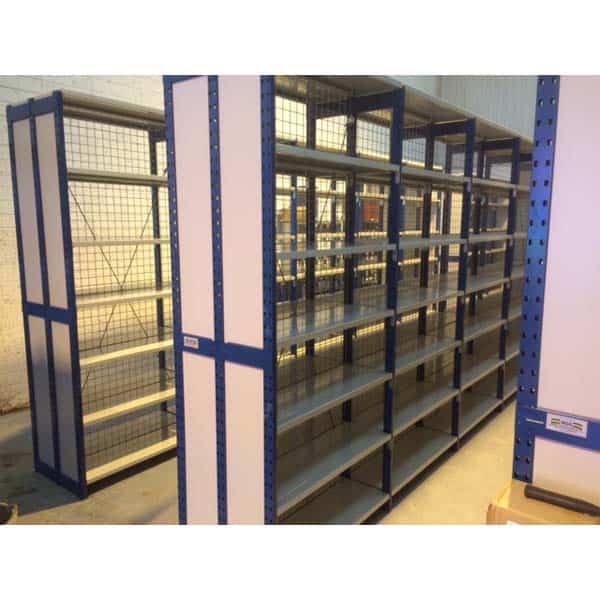

Steel shelving with a hard wearing galvanised finish finish that will last the rigours of any environment

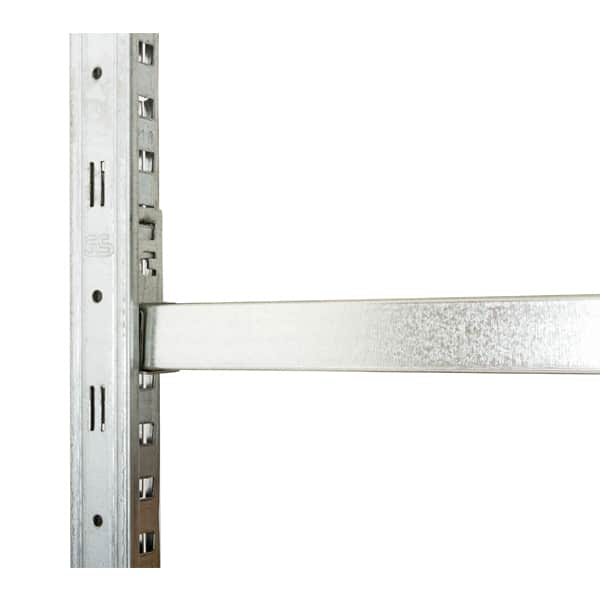

Expo 3 uses the same upright as our Expo 4 shelving system, but has the unique shelf design which can have capacities up to 400kgs UDL. The design is based on a pair of shelf carriers and the combination of 100mm or 200mm panels to make up the required depth.
DIMENSIONS
HEIGHT
Standard bay height (mm)
2000
Other available heights (mm)
2200, 2500, 3000
WIDTH
Widths (mm)
700, 1000, 1150, 1300
DEPTH
Depths (mm)
200, 300, 400,
500, 600, 800
APPLICATION

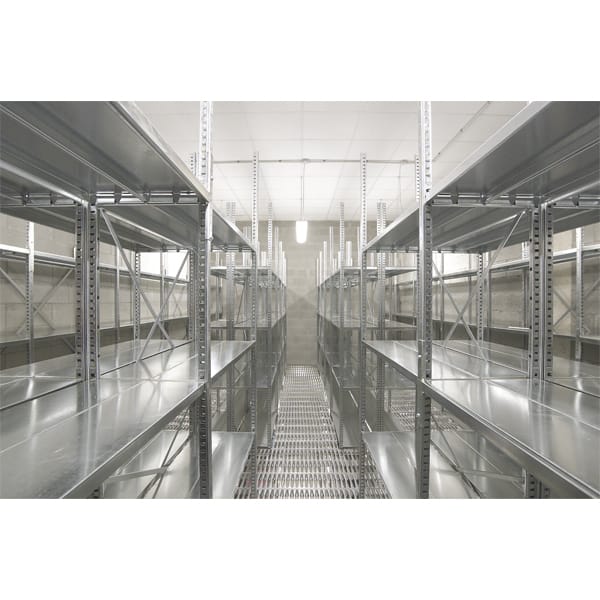

Environment
Warehouse, Stockroom,
Workshop
Usage

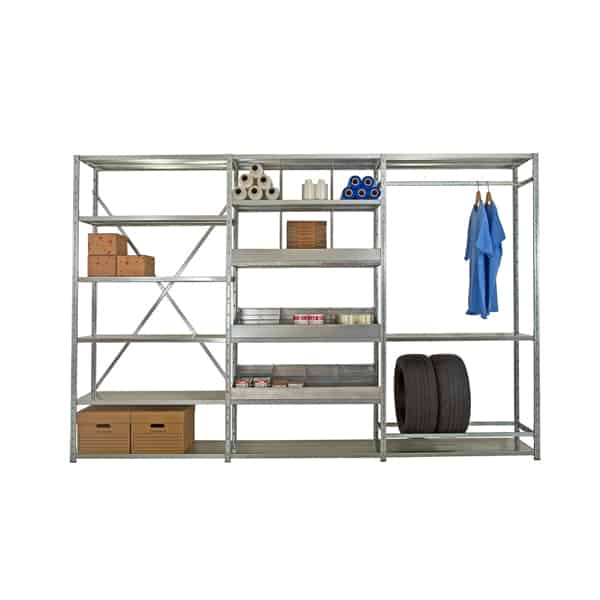

Multipurpose Storage,
Hard Wearing Storage,

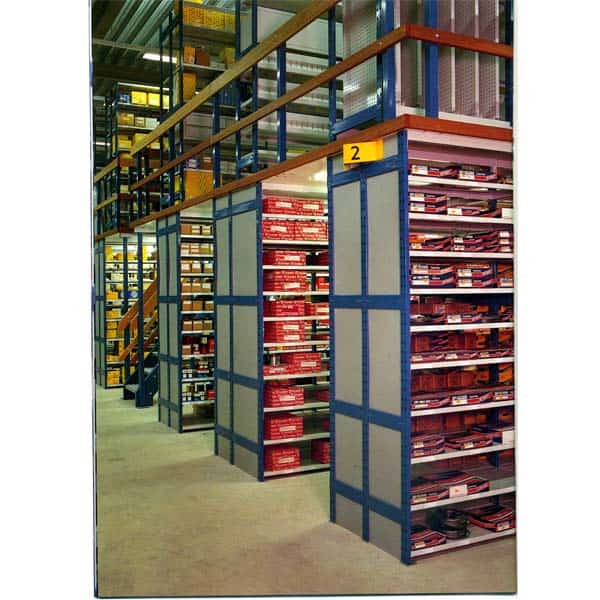

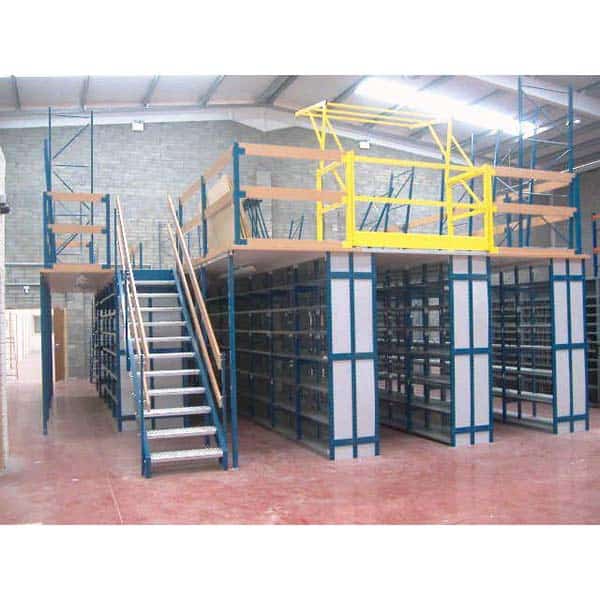

Multi Tier Application
CONSTRUCTION
Uprights: Steel
Galvanised
Shelf Carriers: Steel
Galvanised
Shelves: Steel
Galvanised
LOADING
Shelf Load
300kg UDL
Max Bay Load
Approx. 2500kg UDL
