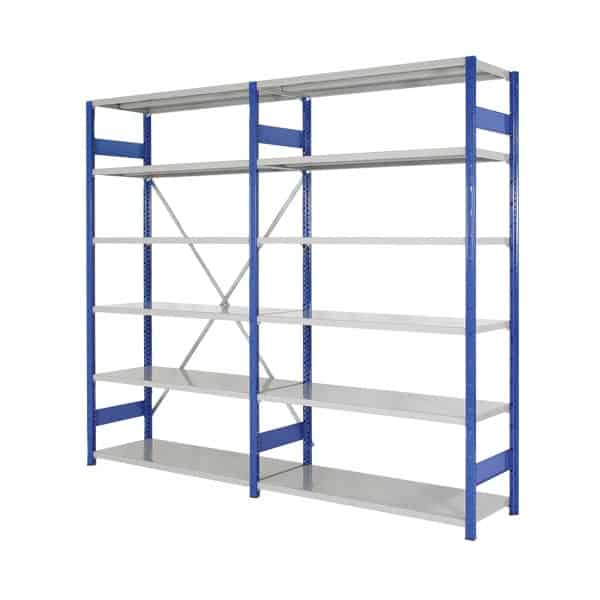

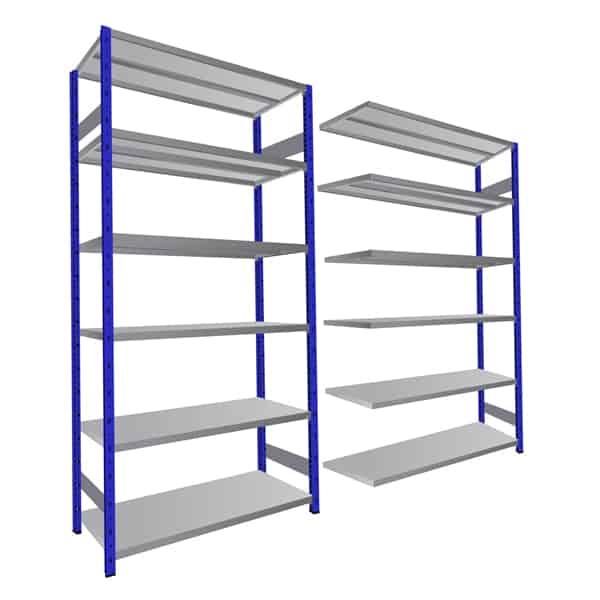

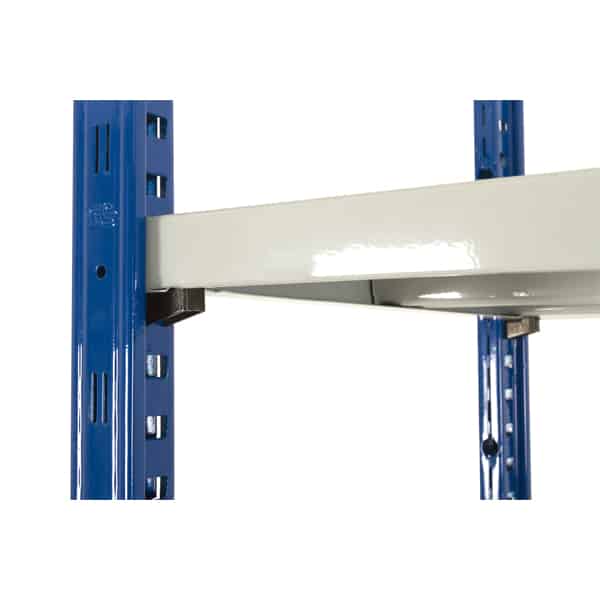

With Expo 4 it’s as easy as 1-2-3. Expo 4’s unique friction steel clip and shelf design allows the system to be safely erected in minutes.

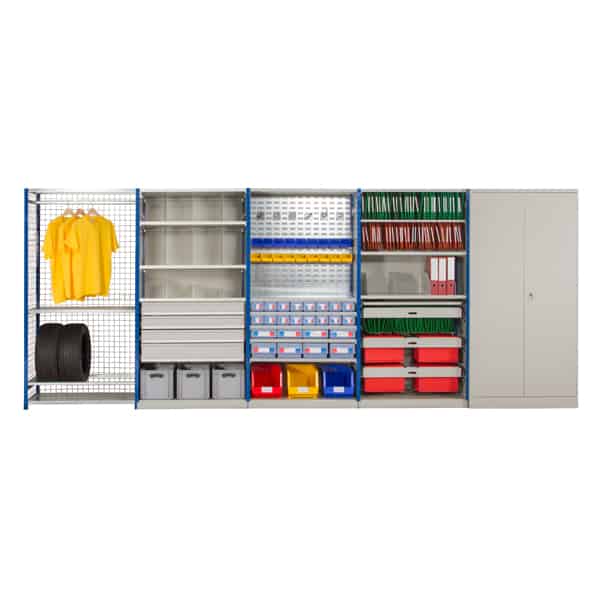

It now boasts one of the largest selections of modular capacities and sizes, along with an unrivalled range of accessories all finished in a high quality epoxy powder coat paint. EXPO 4 offers designers and specifiers a solution to meet any design brief, whether it’s a few bays for the office, a multi-tier system or high bay project for the warehouse.
DIMENSIONS
HEIGHT
Standard bay height (mm)
2000
Other available heights (mm)
2200, 2500, 3000
We can supply projects with
uprights up to 7000mm high
WIDTH
Widths (mm)
700, 1000, 1150
DEPTH
Depths (mm)
300, 400, 500, 600
APPLICATION
Environment

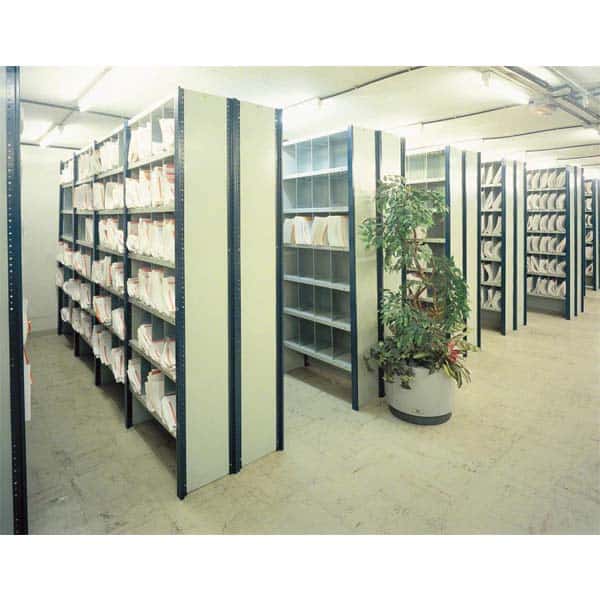

Warehouse, Stockroom,
Office, Workshop
Usage
Multipurpose Storage,
Small Parts Picking,

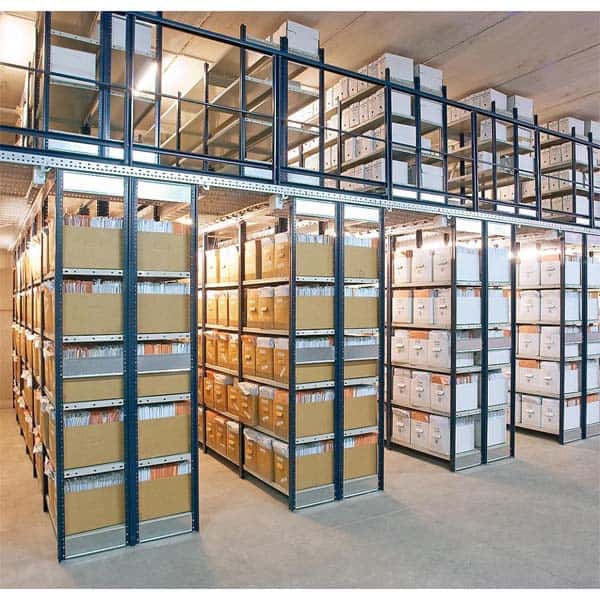

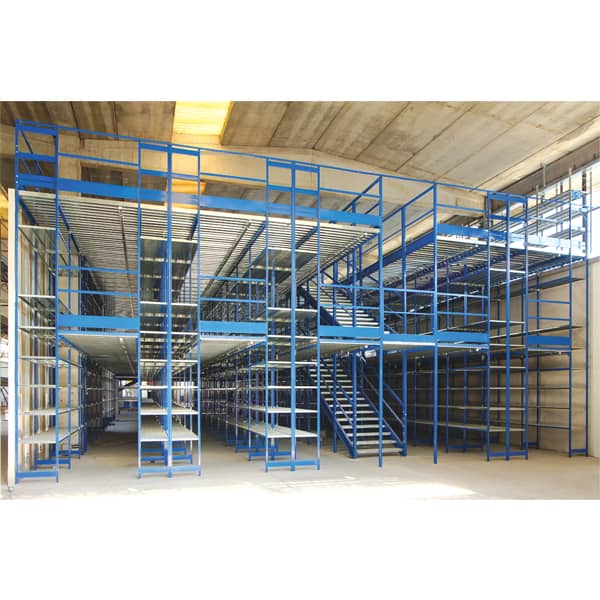

Multi Tier Application,

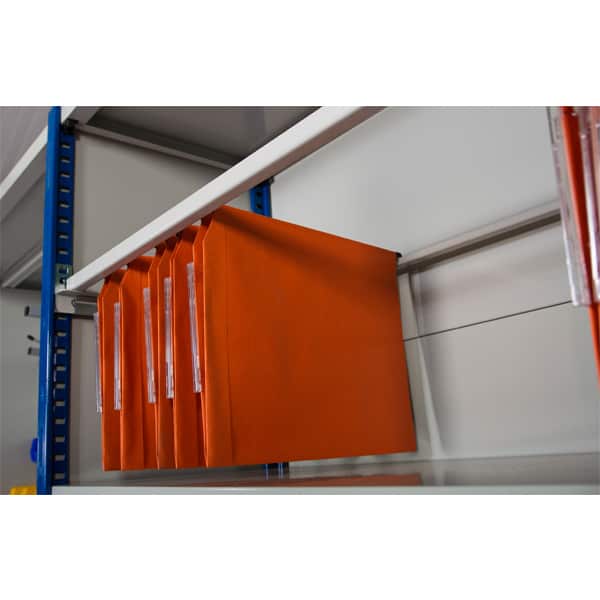

Office Solutions
CONSTRUCTION
Uprights: Steel
Blue RAL5010
Side Battens: Steel
Blue RAL5010
Shelf Clips: Steel
Galvanised
Shelves: Steel
Grey RAL7038
LOADING
Shelf Load
200kg UDL
Max Bay Load
Approx. 2500kg UDL
