The Klime-Ezee Access Platform is a heavy duty product with strengthened treads. Having an extra long platform and side platform access, make it suitable for all types of loading / unloading requirements!
Product Code |
Treads | Working Platform Height |
Working Height |
Overall Height |
Overall Width |
Overall Length |
Weight | Brake Type |
---|---|---|---|---|---|---|---|---|

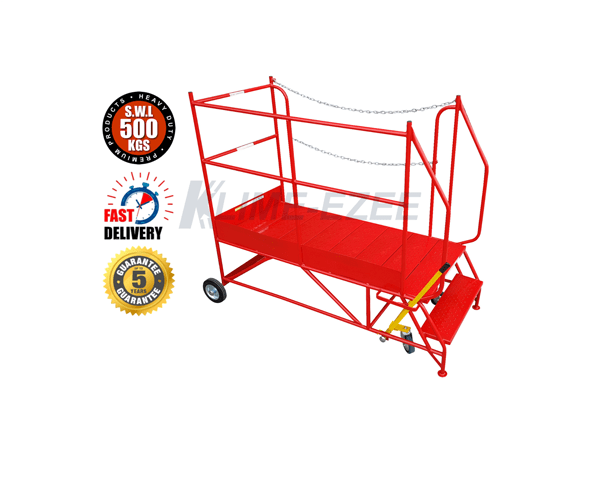

KAP 02 | 2 | 500 | 1500 – 2250 | 1500 | 995 | 1805 | 60 | Side Brake |

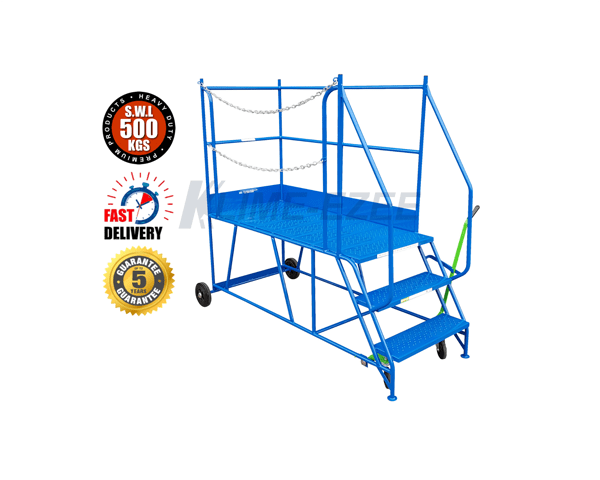

KAP 03 | 3 | 750 | 1750 – 2500 | 1750 | 995 | 1960 | 67 | Side brake |

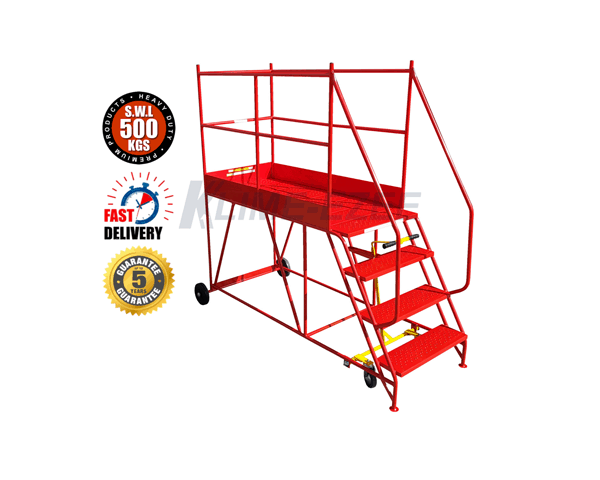

KAP 04 | 4 | 1000 | 2000 – 2750 | 2000 | 995 | 2110 | 73 | Central brake |

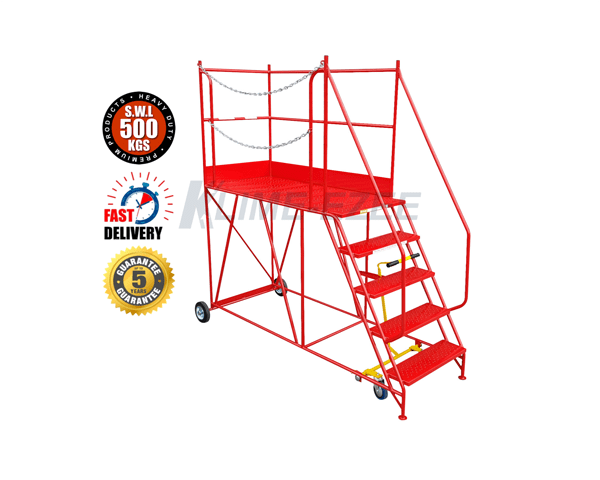

KAP 05 | 5 | 1250 | 2250 – 3000 | 2250 | 995 | 2470 | 80 | Central brake |

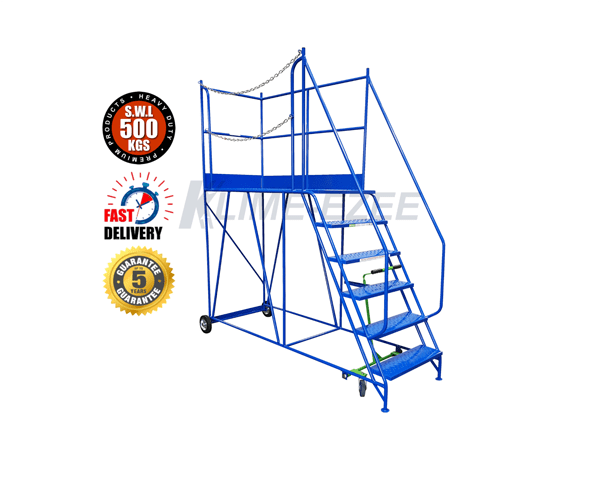

KAP 06 | 6 | 1500 | 2500 – 3250 | 2500 | 995 | 2560 | 87 | Central brake |

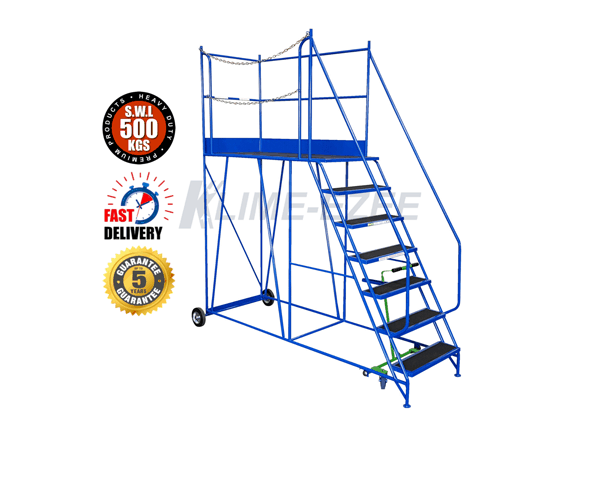

KAP 07 | 7 | 1750 | 2750 – 3500 | 2750 | 995 | 2650 | 95 | Central brake |

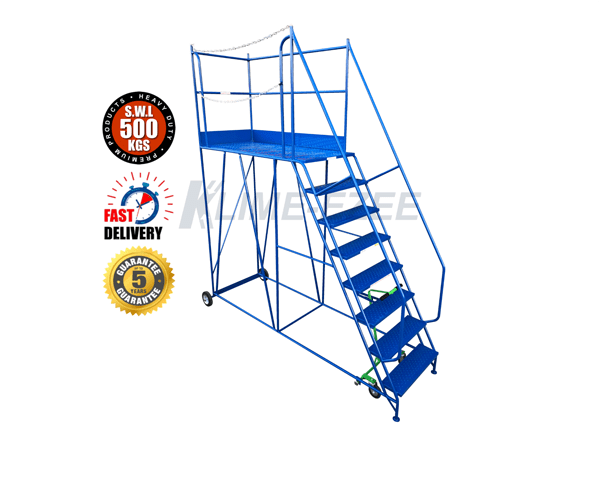

KAP 08 | 8 | 2000 | 3000 – 3750 | 3000 | 995 | 2775 | 103 | Central brake |
Please Note : All dimensions are approximate and shown in mm, with weights shown in Kg.
Due to our ever improving working environment, we may make enhancements to our products which effect its dimensions. Therefore, reserve the right to amend these at any time, to better serve our customer.
