Our Narrow-Aisle Pro Range is perfect for use where space is at a premium! Suitable for use in archives, warehouses (with aisle racking) and office environments.
- Platform height between 500 – 2000 mm
- Tread size 450 (w) x 200 (D) mm
- Platform size 450 (w) x 400 (D) mm
This range comes fully welded and ready to use. Operate only between aisle racking or where fully supported on both sides!
| Product Code |
Treads | Working Platform Height |
Working Height |
Overall Height |
Overall Width |
Overall Length |
Weight | Brake Type |
|---|---|---|---|---|---|---|---|---|
| KNA 02 | 2 | 500 | 1500 – 2250 | 1500 | 590 | 735 | 24 | Plunger castors |

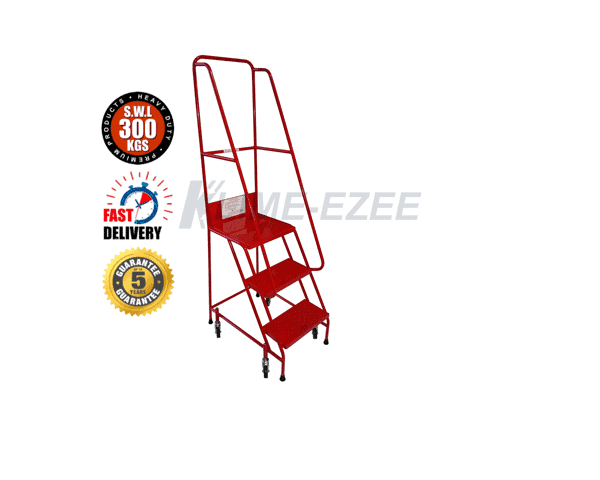

| KNA 03 | 3 | 750 | 1750 – 2500 | 1750 | 590 | 735 | 33 | Plunger castors |

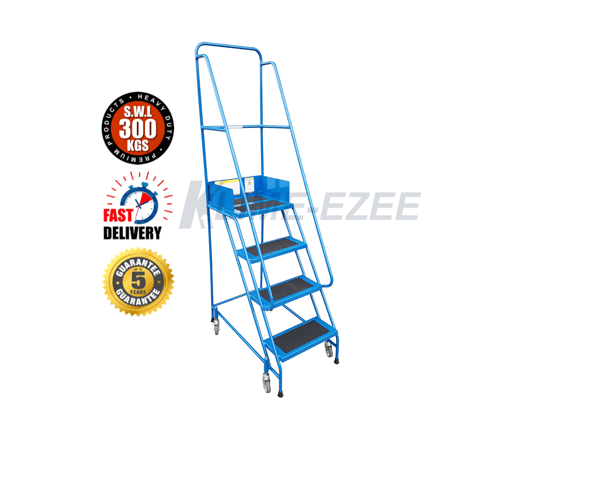

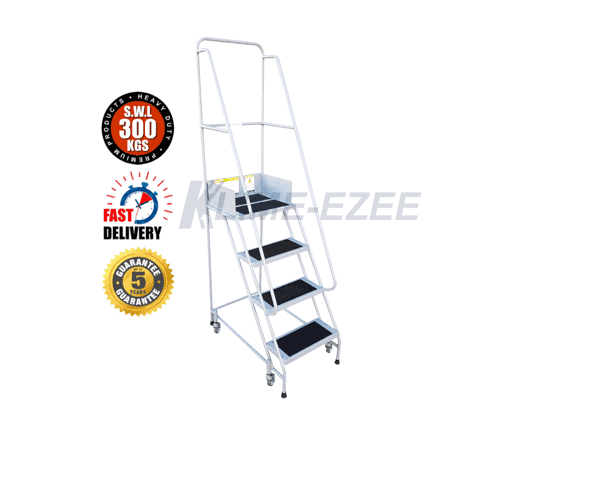

| KNA 04 | 4 | 1000 | 2000 – 2750 | 2000 | 590 | 920 | 45 | Plunger castors |

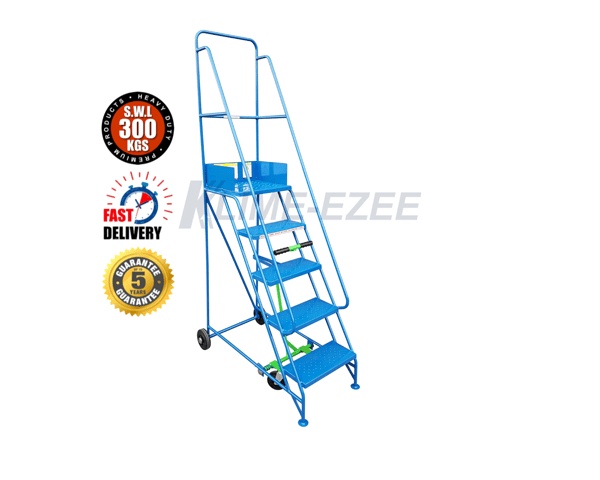

| KNA 05 | 5 | 1250 | 2250 – 3000 | 2250 | 630 | 1150 | 57 | Central brake |

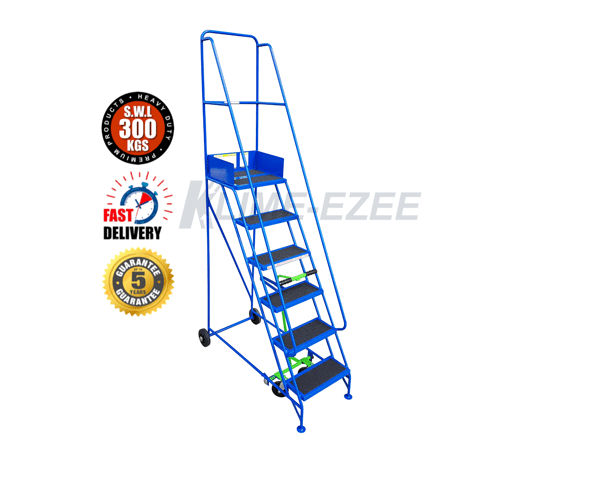

| KNA 06 | 6 | 1500 | 2500 – 3250 | 2500 | 630 | 1360 | 64 | Central brake |

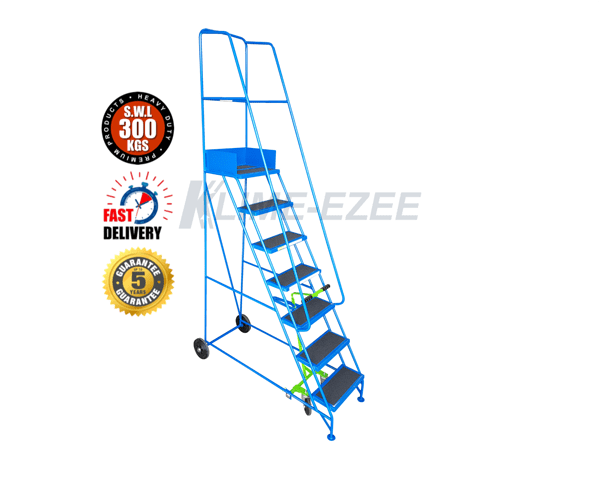

| KNA 07 | 7 | 1750 | 2750 – 3500 | 2750 | 630 | 1510 | 72 | Central brake |

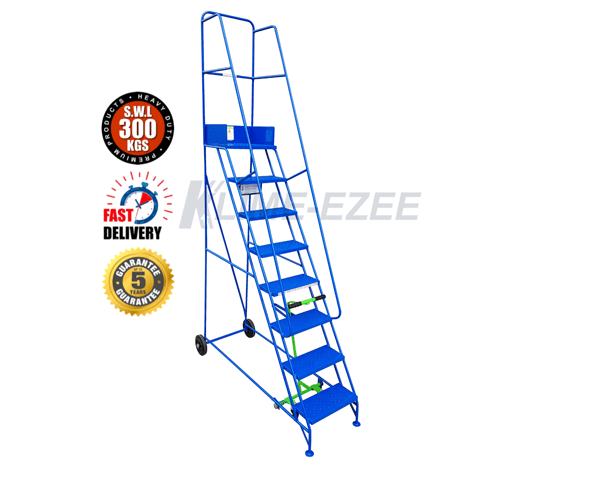

| KNA 08 | 8 | 2000 | 3000 – 3750 | 3000 | 630 | 1580 | 80 | Central brake |
Please Note : All dimensions are approximate and shown in mm, with weights shown in Kg.
Due to our ever improving working environment, we may make enhancements to our products which effect its dimensions. Therefore, reserve the right to amend these at any time, to better serve our customer.
